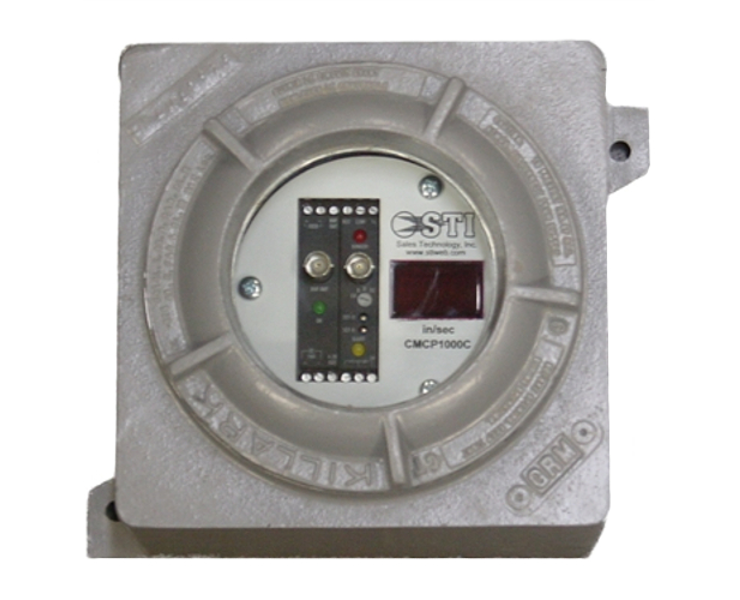

CMCP1000C Dual Limit Solid State Vibration Switch with Large Enclosure

The CMCP1000C is a single channel Vibration Monitor with an accelerometer packaged in an explosion-proof housing that is suitable for NEC Division I hazardous areas. Designed to comply with rigid API670 standards, the CMCP1000C far exceeds the capabilities of competitive vibration switches.

Key Features:
[no_unordered_list style=”circle” number_type=”circle_number” animate=”yes” font_weight=”normal”]

Solid State Reliability
Interior Sensor
Two Levels of Alarm with Relays
True “OK” Circuitry with Relay
Adjustable Time Delays
Trip Multiply
4-20 mA Output
Remote Reset
Bright LED Digital Readout

[/no_unordered_list]

In addition to the key features listed above, the CMCP1000C offers a buffered transducer output for detailed diagnostics and optional high-pass and low-pass filters to monitor specific frequency bands.

Specifications:
Power: +24 Vdc at 90mA maximum
Frequency Response: 4 Hz to 5KHz
Analog Outputs: 4-20mA proportional to full scale
Accuracy: 0.5% of full scale range
Maximum Load: 600 Ohms resistive
Operating Temperature: -20° C to +80° C
Relative Humidity: 0-95%, non-condensing
Dimensions: 5 7/16″ W x 5 5/8″ H x 5 5/8″ D (138mm x 143mm x 143mm)
Mounting: 3 Bolt Mount (Standard) 3/4″ NPT (Optional)
Approvals: FM, CSA, UL Class I (BCD), Class II (E,F,G) Class III
