Passive Buffer and Accessory Module CMCP595
Key features:
[no_unordered_list style=”circle” number_type=”circle_number” animate=”yes” font_weight=”normal”]
- Keyphasor/Sensor Input Module
- Buffered Outputs
- Provides Terminations
- Finished Complete Look
- BNC Output for Analyzers
- Selectable Resistance Buffers
- CCD for Accelerometers
- Handles Most Sensors
- Up to 4 Buffered Outputs
- Selectable Bias Voltage Block.
[/no_unordered_list]

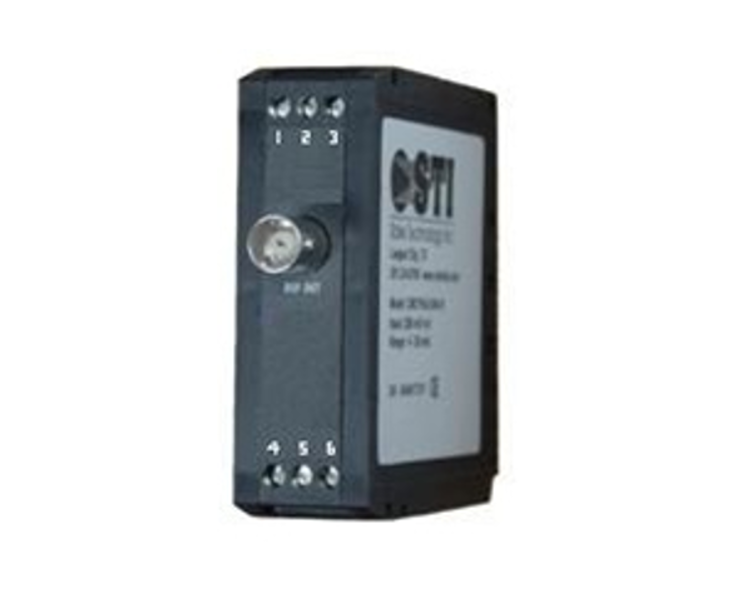

The CMCP595 Accessory Module is designed to handle several interfaces including, Keyphasor, Accelerometers, 3-Wire Sensors and as a 4-Way Passive Buffer for vibration signals. The CMCP595 provides termination point and power routing in a matching CMCP500 Series enclosure.
The unit provides a BNC Connector for Portable Analyzers. By changing internal jumpers the CMCP595 Accessory Module can be configured as a: Keyphasor Module (Eddy Probe -24 VDC) Keyphasor Module (Hall, Inductive, Proximity +24 VDC) Accelerometer Module (Accelerometers using Constant Current Diode) 3-Wire Sensor 4-Way Passive Buffer Module
The CMCP595 Module is very versatile and can be used for many more functions as the need arises. Passive Buffers can be individually selected as 0 Ohms, 100 Ohms, 1k Ohm or 10k Ohms. A “Bias Blocker Jumper” is provided to remove Bias voltages from Signals if required.
Caution: Be sure Constant Current Diode (CCD) is in the circuit when powering Accelerometers. Damages to the Accelerometer will occur with direct power.
