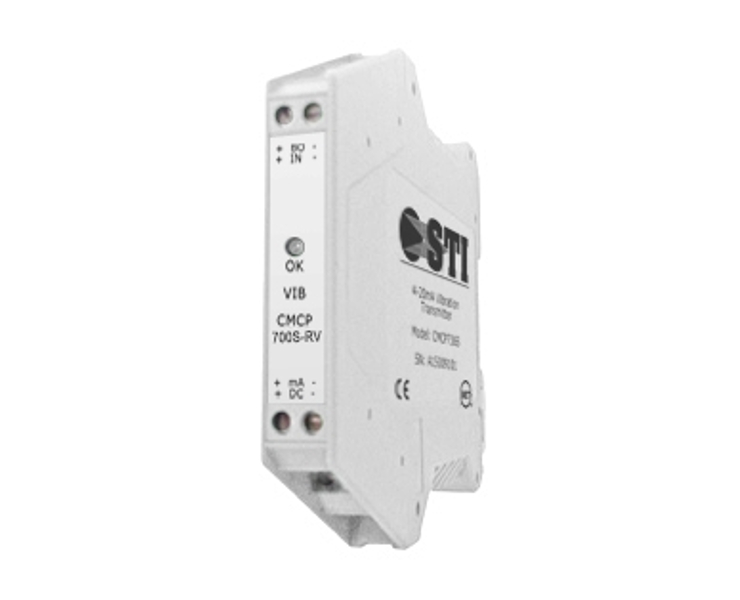

CMCP700S-RV Relative Vibration Transmitter
Key features:
[no_unordered_list style=”circle” number_type=”circle_number” animate=”yes” font_weight=”normal”]
- Proximity System Input
- Displacement (mils/um) Output
- -24VDC Created Onboard
- English or Metric Selectable
- Peak to Peak Detection
- Slimline Din Rail Mounted
- Power On with Red LED Indication
- Buffered Output on Terminal
- 5 Selectable Ranges.
[/no_unordered_list]
The CMCP700S-RV (Relative Vibration Transmitter) accepts a Proximity Probe Sensor Input and creates -24 VDC onboard for sensor power. Standard input is 200 mv/mil (7.87 mv/um) and the CMCP700S-RV provides an output in Displacement (mils, um). Signal Detection is “Peak to Peak”.
