HS-004 Accelerometer Capsule
Vibration Monitoring with Hansford Sensors
Key Features:
[no_unordered_list style=”circle” number_type=”circle_number” animate=”yes” font_weight=”normal”]
- Ultra low power
- From ‘104’ accelerometer range
- Sealed to IP55
- Various frequencies available.
[/no_unordered_list]
Typical Applications:
Fans, pumps, motors, gearboxes, compressore, centrifuges, conveyors, Air handlers, rolls, dryers, presses, cooling, HVAC, spindles, machine tooling, process equipment.
| Technical Performance |
|---|
| Mounted Base Resonance: see ‘How To Order’ table |
| Sensitivity: see: ‘How To Order’ table ± 10% Nominal 80Hz at 22°C |
| Frequency Response: 0.3Hz (18cpm) to 15kHz (900kcpm) ± 5dB |
| Isolation: Base isolated |
| Range: see: ‘How To Order’ table |
| Transverse Sensitivity: Less than 5% |
| Mechanical |
|---|
| Case Material: Stainless Steel |
| Sensing Element/Construction: PZT/Shear |
| Weight: 28gms (nominal) |
| Electrical |
|---|
| Electrical Noise: <500ug |
| Current Range: 0.5mA to 8mA |
| Bias Voltage: 10 – 12 Volts DC |
| Settling Time: 1 second |
| Output Impedance: 100 Ohms max. |
| Case Isolation: >108 Ohms at 500 Volts |
| Environmental |
|---|
| Operating Temperature Range: -40 to 120°C |
| Sealing: IP55 |
| EMC: EN61326-1:2013 |
Typical Frequency Response (at 100mV/g):

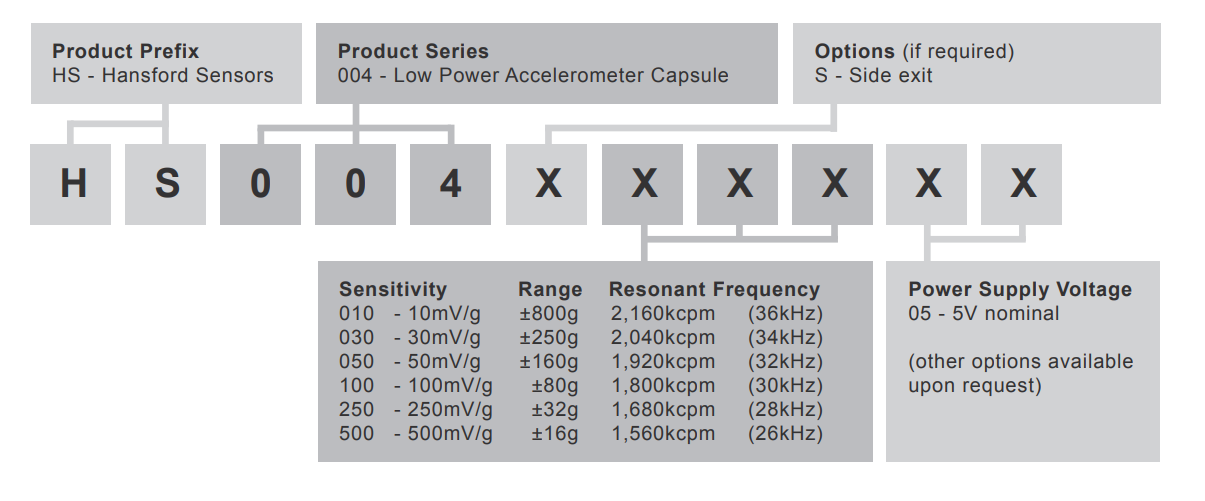

How to order:
