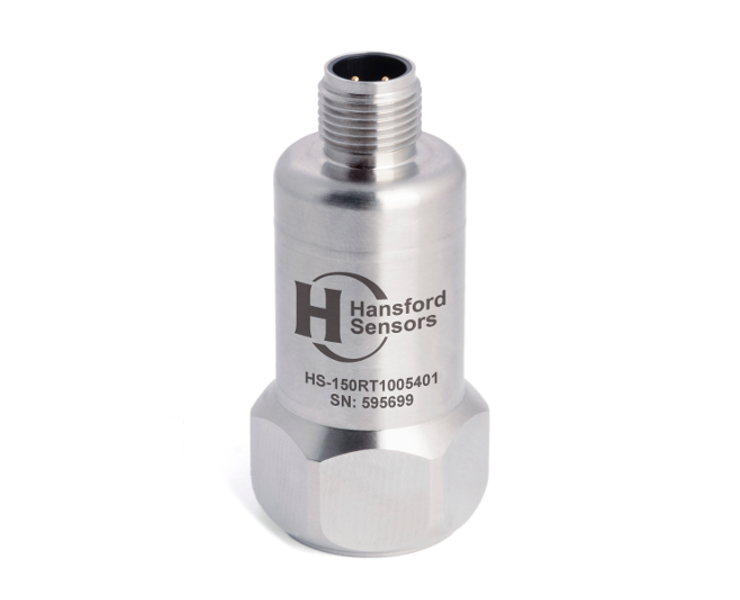

HS-150RT Premium Accelerometer with Pt100 temperature output

Vibration Monitoring with Hansford Sensors

Range of AC 100mV/g accelerometers is designed for use with all types of data collectors and online systems using two-wire constant current method of drive. The range includes standard, high performance premium and OEM accelerometers, each manufactured to the highest ISO standards and backed by our outstanding technical customer support services.

Key Features:

[no_unordered_list style=”circle” number_type=”circle_number” animate=”yes” font_weight=”normal”]

Fast settling times 1 sec
Temperature (Pt100) and vibration outputs
Sealed to IP67
Various mountings
Low cost cable assembly

[/no_unordered_list]

Typical Applications:
Fans, pumps, motors, gearboxes, compressore, centrifuges, conveyors, Air handlers, rolls, dryers, presses, cooling, VAC, spindles, machine tooling, process equipment

Technical Performance
Mounted Base Resonance: see ‘How To Order’ table
Sensitivity: see: ‘How To Order’ table ± 10% Nominal 80Hz at 22°C
Frequency Response: 1.5Hz (90cpm) to 10kHz (600kcpm) ± 5%
0.5Hz (30cpm) to 12kHz (720kcpm) ± 10%
0.2Hz (12cpm) to 15kHz (900kcpm) ± 3dB
Isolation: Base isolated
Range: see: ‘How To Order’ table
Temperature Output: Pt100 (100 Ohms)
Transverse Sensitivity: Less than 5%

Mechanical
Case Material: Stainless Steel
Sensing Element/Construction: PZT/Compression
Mounting Torque: 8Nm
Weight: 140gms (nominal)
Screened Cable Assembly: HS-Ac010 – straight
HS-AC011 – right angle
Mounting Threads: see: ‘How To Order’ table

Electrical
Electrical Noise: 0.1mg max
Current Range: 0.5mA to 8mA
Bias Voltage: 10 – 12 Volts DC
Settling Time: 1 seconds
Output Impedance: 200 Ohms max.
Case Isolation: >108 Ohms at 500 Volts
