HS-165 Accelerometer – Standard Top- High Temperature with Inline Charge Amplifier Industrial Accelerometer
Key Features:
[no_unordered_list style=”circle” number_type=”circle_number” animate=”yes” font_weight=”normal”]
- Rated up to 250°C
- Various mountings
- Sealed to IP67
[/no_unordered_list]
Typical Applications:
Fans, pumps, motors, gearboxes, compressore, centrifuges, conveyors, Air handlers, rolls, dryers, presses, cooling, HVAC, spindles, machine tooling, process equipment
| Technical Performance |
|---|
| Mounted Base Resonance: see ‘How To Order’ table |
| Sensitivity: see: ‘How To Order’ table ± 10% Nominal 80Hz at 22°C |
| Frequency Response: 3Hz (180cpm) to 4.5kHz (270kcpm) ± 5% |
| 2Hz (120cpm) to 6kHz (360kcpm) ± 10% |
| Isolation: Base isolated |
| Range: see: ‘How To Order’ table |
| Transverse Sensitivity: Less than 5% |
| Mechanical |
|---|
| Case Material: Stainless Steel |
| Sensing Element/Construction: PZT/Compression |
| Mounting Torque: 8Nm |
| Weight: 125gms (nominal) |
| Screened Cable Assembly: see: www.hansfordsensors.com for options |
| Mounting Threads: see: ‘How To Order’ table |
| Electrical |
|---|
| Electrical Noise: 0.1mg max |
| Current Range: 0.5mA to 8mA |
| Bias Voltage: 10 – 12 Volts DC |
| Settling Time: 2 seconds |
| Output Impedance: 200 Ohms max. |
| Case Isolation: >108 Ohms at 500 Volts |
| Environmental |
|---|
| Operating Temperature Range: min. -55°C |
| Sealing: IP67 |
| Maximum Shock: 5000g |
| EMC: EN61326-1:2013 |
Typical Frequency Response (at 100mV/g):

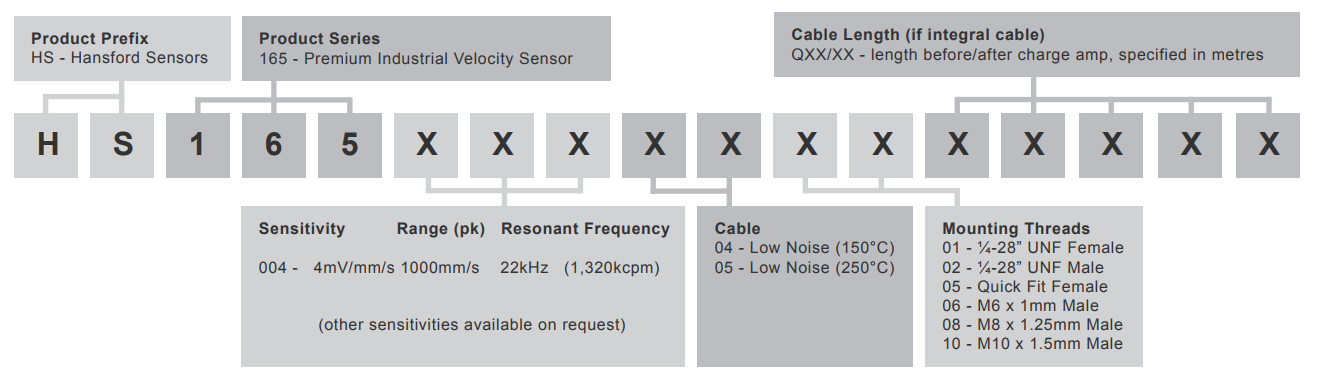

How to order:
