The Hub of Lubricant Monitoring
The Hub delivers more port versatility then anything else on the market. Having four lateral ports allows you to install oil level sight glasses, BS&W Bowls, sample valves, drain valves, filter cart, etc. all at the same time. And with a high flow sample port, the Hub can tackle any sampling needs you have.
| Specifications |
|---|
| Shipping Weight: 3.5 lbs. (for qty. 1) |
| Recommended Temperature Range: Range is -13°F to +400°F |
| Recommended PSI: 500 psi working and 125 psi for sampling |
| Body Material: Heavy-duty powder-coated cast aluminum and zinc plated steel |
| Pilot Tube: 1/4″ Stainless steel, 12″ long |
| Sample Port: High flow, easy access with shielded design |
| Easy Install: Hub Body is easily attached with supplied bolts and can be adjusted every 45-degress to achieve optimal orientation |
| Lateral Ports: (2) 1″ NPT and (2) 3/4″ NPT, Includes (4) low profile plugs for sealing lateral ports when not in use and installation hex key is included |

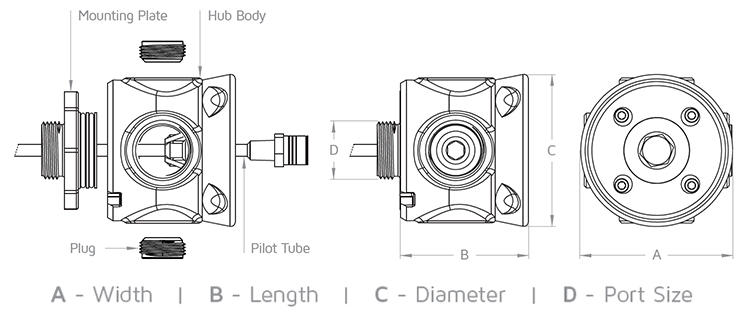

| Description | Part Number | A | B | C | D |
|---|---|---|---|---|---|
| 0.75″ NPT | HUB.075NPT | 3.5″ | 2.9″ | 3.5″ | 0.75″ |
| 1″ NPT | HUB.100NPT | 3.5″ | 2.9″ | 3.5″ | 1″ |
| 1.25″ NPT | HUB.125NPT | 3.5″ | 2.9″ | 3.5″ | 1.25″ |
| 1.5″ NPT | HUB.150NPT | 3.5″ | 2.9″ | 3.5″ | 1.5″ |
| 0.75″ BSPP | HUB.075BSPP | 3.5″ | 2.9″ | 3.5″ | 0.75″ |
| 1″ BSPP | HUB.100BSPP | 3.5″ | 2.9″ | 3.5″ | 1″ |
