HS-130 Accelerometer- Compact- Flame Retardant Cable
Key Features:
[no_unordered_list style=”circle” number_type=”circle_number” animate=”yes” font_weight=”normal”]
- Various mountings
- Sealed to IP65
- Flexible cable
- Flame retardant to IEC 60332-1
- Includes 5 metres of cable (other lengths available on request).
[/no_unordered_list]
Typical Applications:
Fans, pumps, motors, gearboxes, compressore, centrifuges, conveyors, Air handlers, rolls, dryers, presses, cooling, HVAC, spindles, machine tooling, process equipment
| Technical Performance |
|---|
| Mounted Base Resonance: 32kHz (nominal) |
| Sensitivity: see: ‘How To Order’ table ± 10% Nominal 80Hz at 22°C |
| Frequency Response: 2Hz (120cpm) to 12kHz (720kcpm) ± 5% |
| – dependant on charge amplifier |
| Isolation: Base non-isolated |
| Range: see: ‘How To Order’ |
| Transverse Sensitivity: Less than 5% |
| Mechanical |
|---|
| Case Material: Stainless Steel |
| Sensing Element/Construction: PZT/Compression |
| Mounting Torque: 8Nm |
| Weight: 32gms (nominal) |
| Screened Cable Assembly: see: www.hansfordsensors.com for options |
| Mounting Threads: see: ‘How To Order’ table |
| Environmental |
|---|
| Operating Temperature Range: -40 to 100°C |
| Sealing: IP65 |
| Maximum Shock: 5000g |
| EMC: EN61326-1:2013 |
Typical Frequency Response (at 100mV/g):

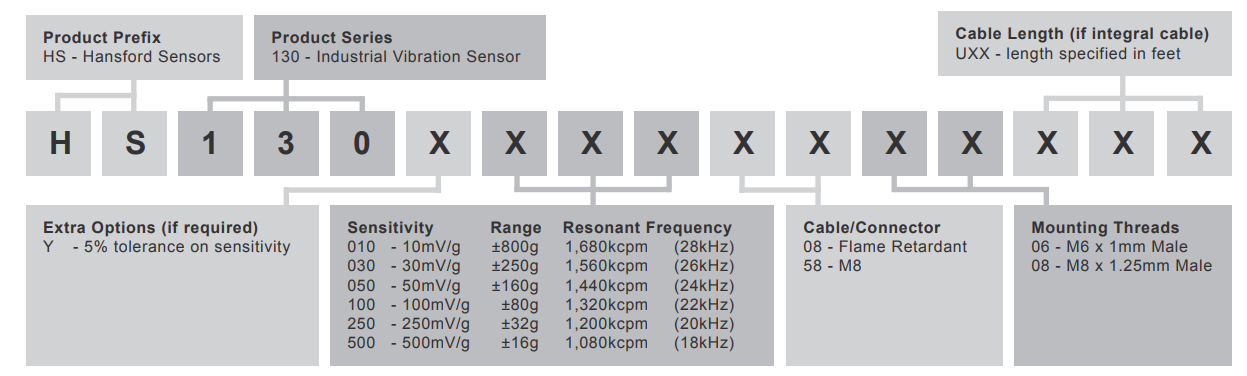

How to order:
